Historians consider the British Supermarine Spitfire to be one of World War II's finest fighters. This
sport-scale ARF version does the legend proud — with a high-quality design that has the versatility
to please every low-wing pilot.
sport-scale ARF version does the legend proud — with a high-quality design that has the versatility
to please every low-wing pilot.
SPECIFICATIONS
Stock Number: GPMA1478
Wingspan: 39 in (990 mm)
Wing Area: 272 in² (17.5 dm²)
Weight: 40-48 oz (1.13-1.36 kg)
Wing Loading: 21-25 oz/ft² (65-78 g/dm²)
Length: 35.5 in (895 mm)
Glow Engine Required: 2-stroke .25 cu in (4
cc)
Electric Motor Requirements: 1450kV
out-runner brushless motor; 45A brushless
ESC; 11.1V 3200 mAh LiPo battery
Radio Required: 4-channel radio w/4-5
micro servos
Stock Number: GPMA1478
Wingspan: 39 in (990 mm)
Wing Area: 272 in² (17.5 dm²)
Weight: 40-48 oz (1.13-1.36 kg)
Wing Loading: 21-25 oz/ft² (65-78 g/dm²)
Length: 35.5 in (895 mm)
Glow Engine Required: 2-stroke .25 cu in (4
cc)
Electric Motor Requirements: 1450kV
out-runner brushless motor; 45A brushless
ESC; 11.1V 3200 mAh LiPo battery
Radio Required: 4-channel radio w/4-5
micro servos
---High quality, built-up balsa/ply construction.
---Includes mounting components for either glow or electric power.
---AMA Event 750, Combat Class 2610 legal (when used with recommended glow set-up).
---Includes mounting components for either glow or electric power.
---AMA Event 750, Combat Class 2610 legal (when used with recommended glow set-up).

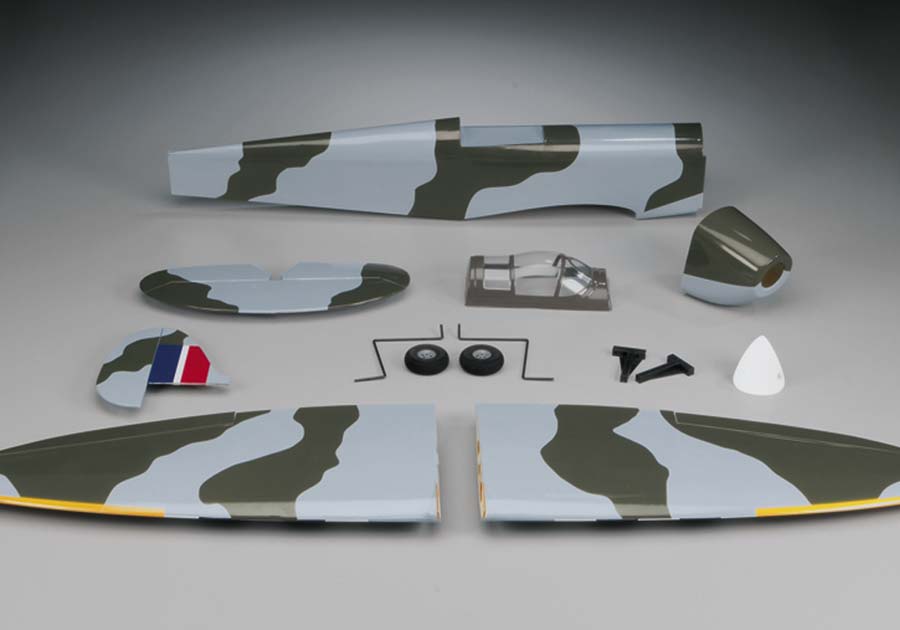

Great Planes includes a fiberglass cowl and lightweight, balsa/ply
main structures featuring an attractive Allied trim scheme.
main structures featuring an attractive Allied trim scheme.
| $ 129.99 |

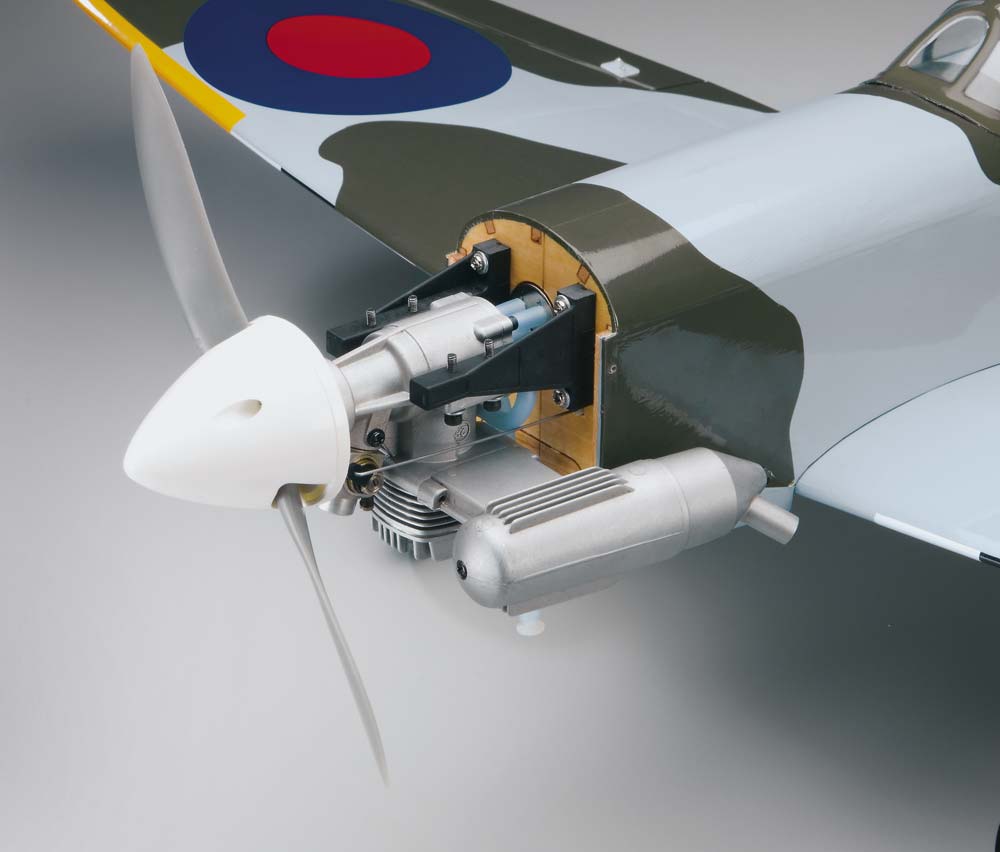

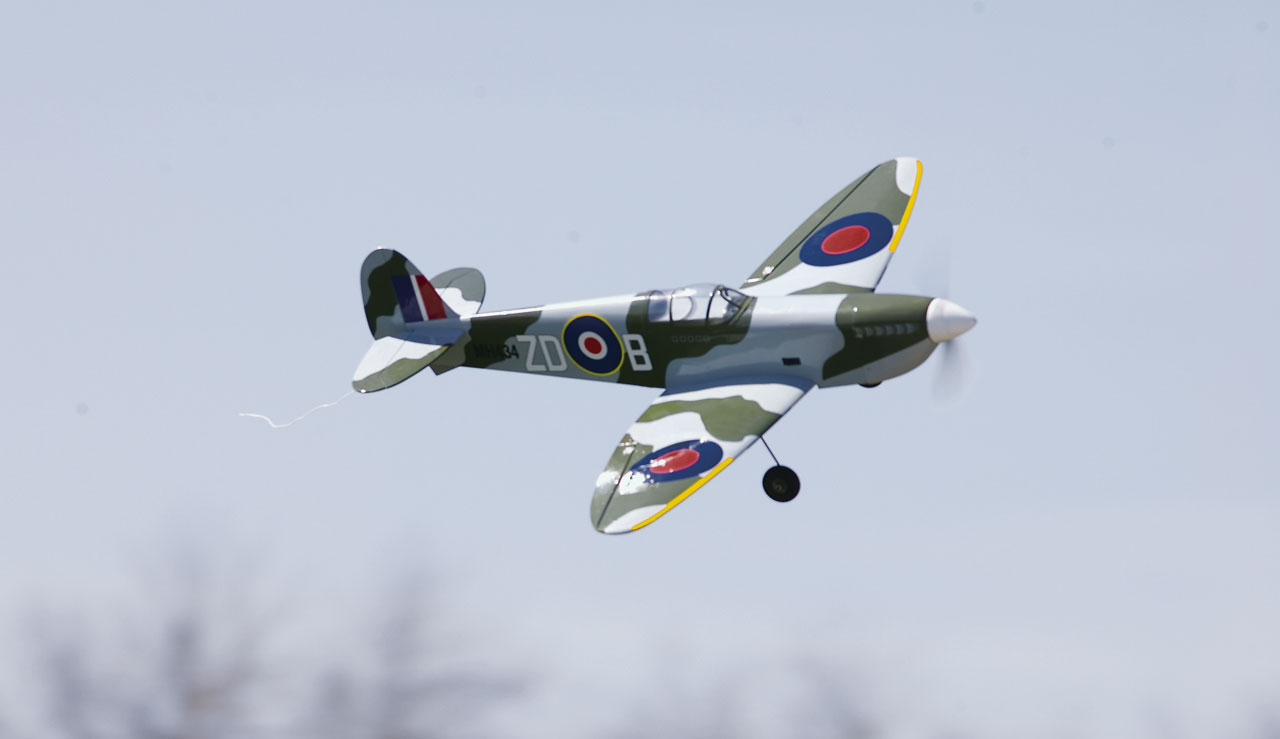

| With a glow power, enjoy thrilling sport action or cut your combat competition's ribbon to shreds! If you prefer to fly using glow power — as required for AMA-sanctioned combat contests — Great Planes provides the mounting materials needed to install a 2-stroke .25 cu in (4 cc) engine. |
| Gallery |

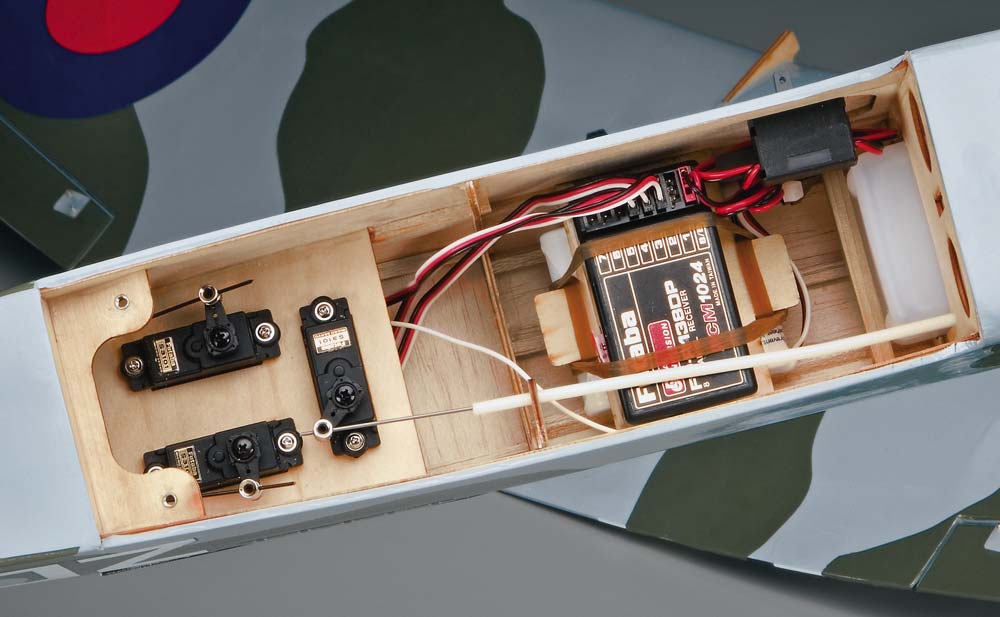

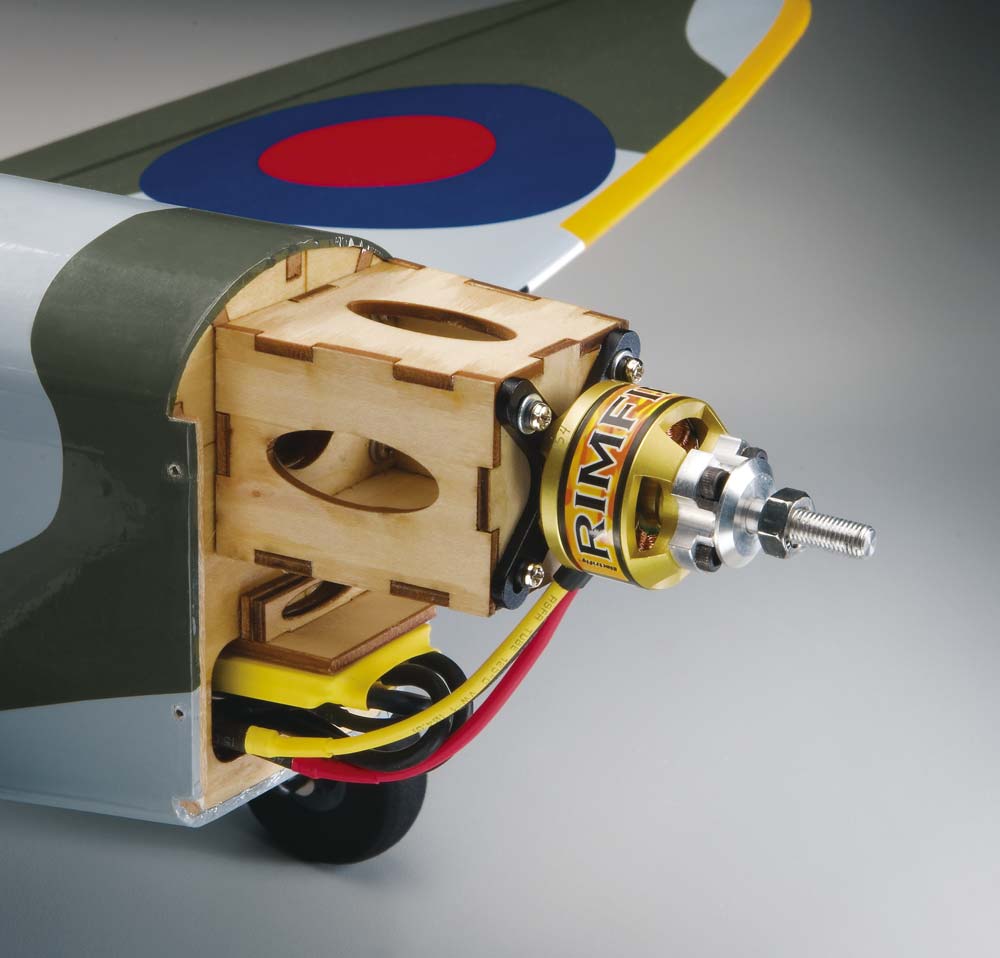

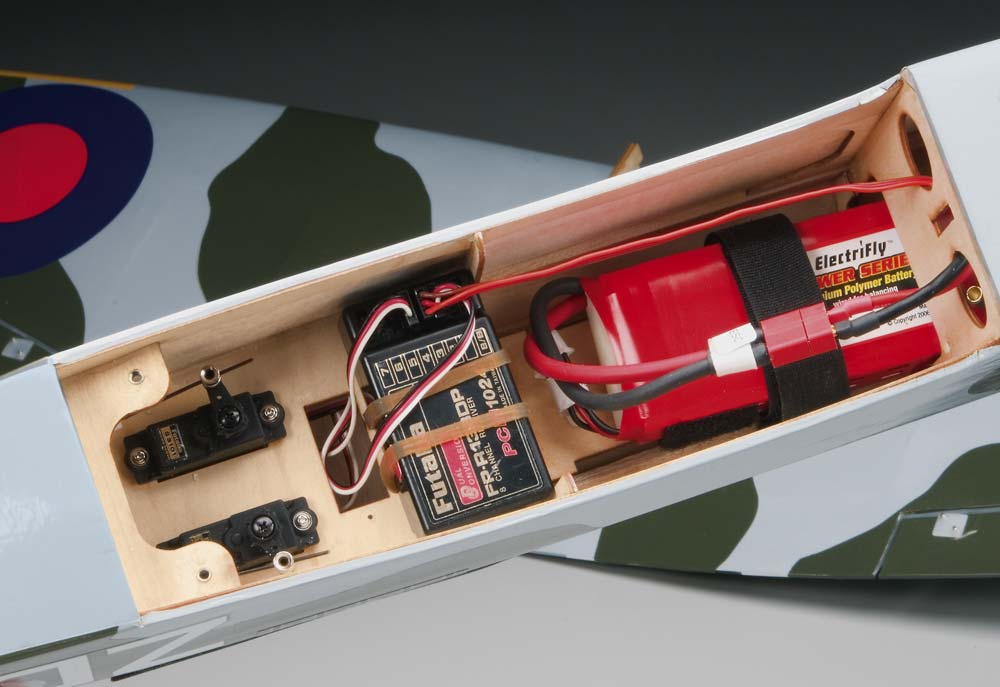

| For an outstanding brushless electric power system, outfit the Spitfire with a 1450kV out-runner brushless motor, 45A ESC, and 3200mAh LiPo battery. Laser-cut parts for installing a complete brushless electric power system are supplied. Accessing electronics for maintenance is as simple as removing the wing. |

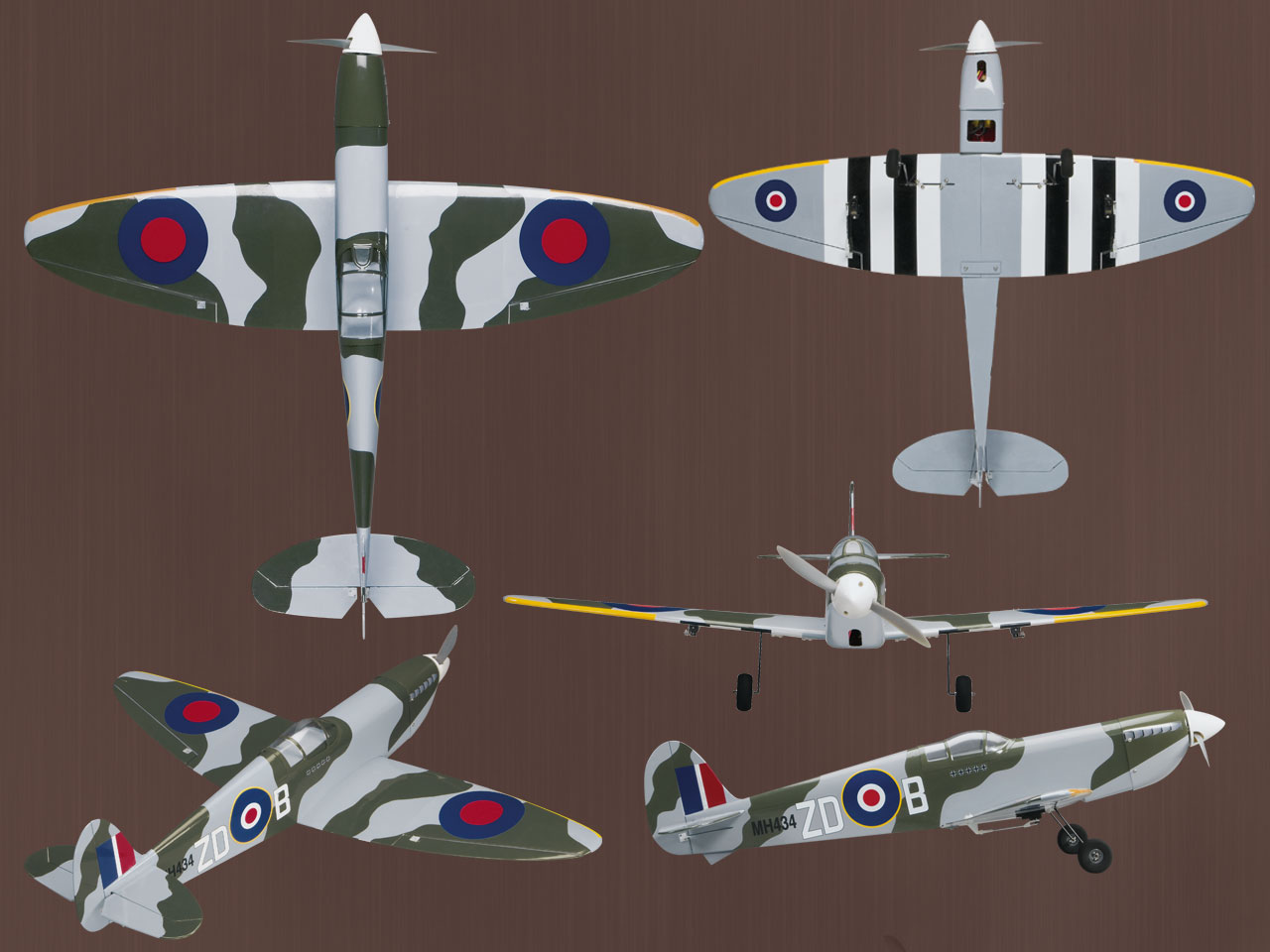

The Spitfire comes already covered with five colors, that represent a
typical trim scheme of the World War II Allied fighter. Decals shown
are included and die-cut for easy application
typical trim scheme of the World War II Allied fighter. Decals shown
are included and die-cut for easy application

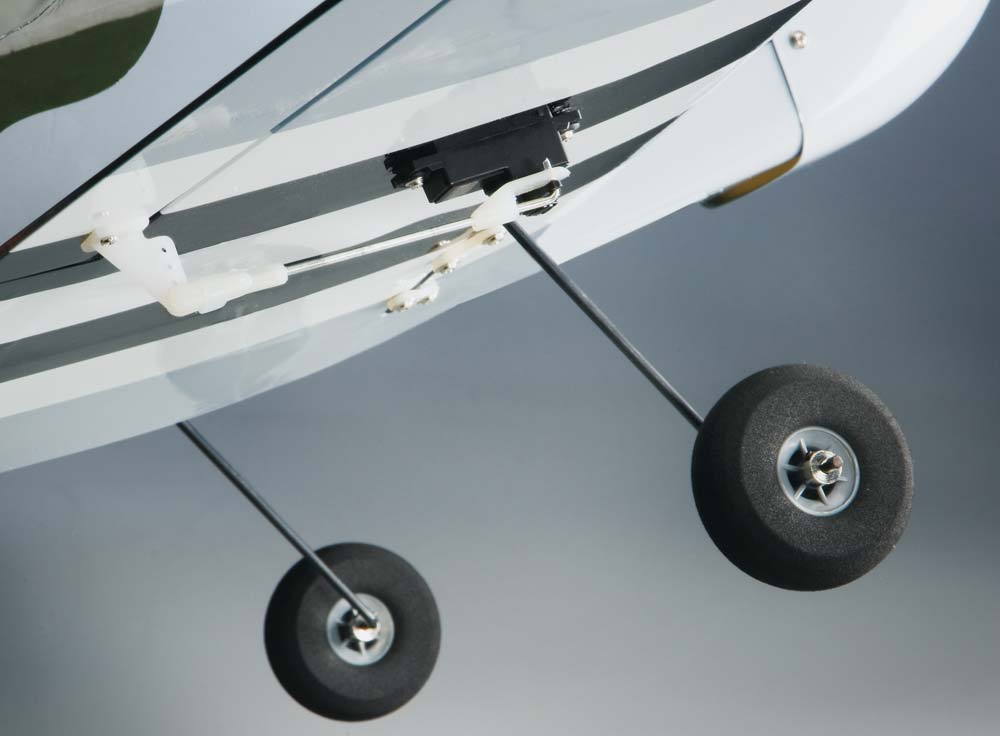

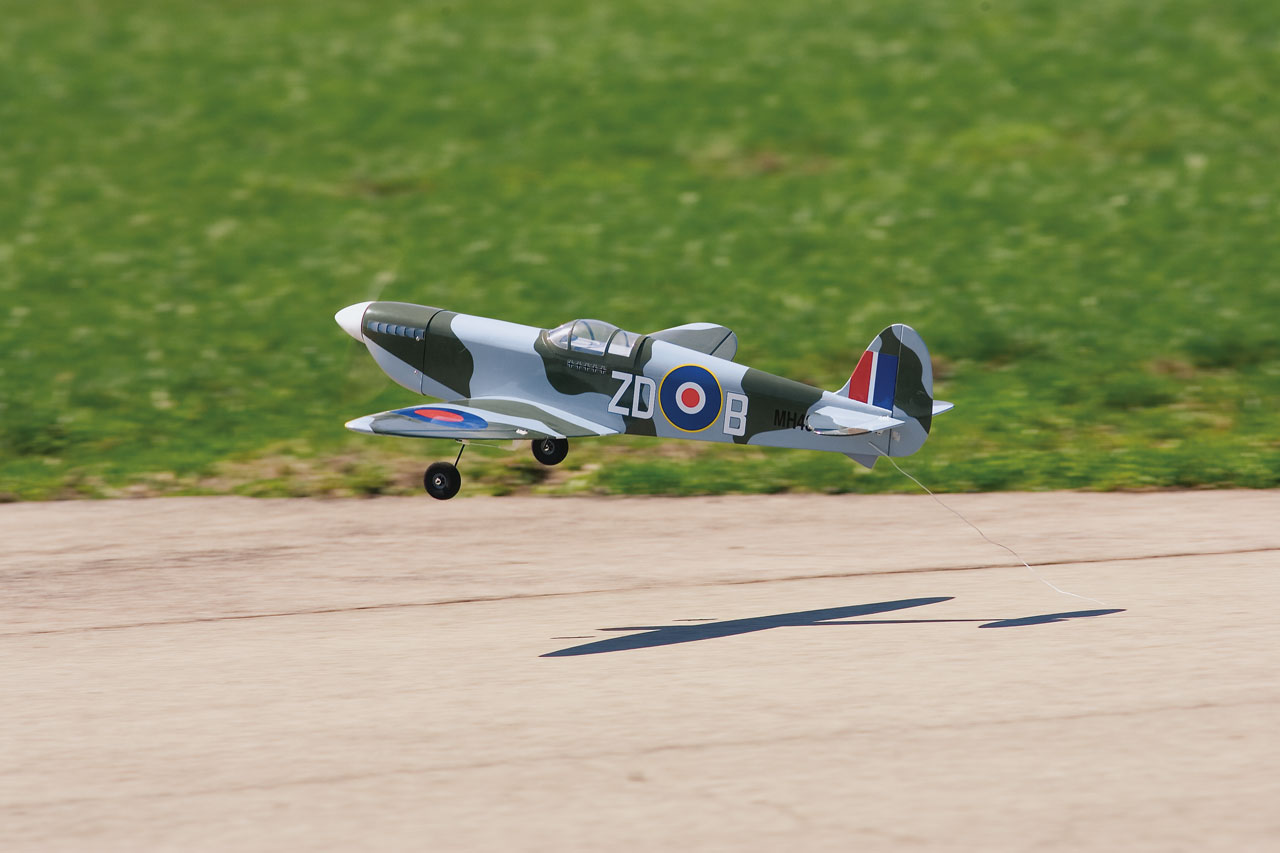

You can assemble this model for belly landings or with the fixed
wire landing gear provided — and mount your aileron servos and
linkages on the top or bottom of the wing.
wire landing gear provided — and mount your aileron servos and
linkages on the top or bottom of the wing.
 |
 |
 |
 |
 |
 |
 |
