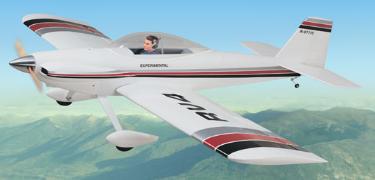

A favorite for recreation and cross-country travel, the full-size RV-4 is the most popular homebuilt in
the world. This IMAA-legal, 1/4 scale model likewise earns high marks for versatility -- offering a
realistic flight envelope whether you install a glow engine or electric brushless motor system.
the world. This IMAA-legal, 1/4 scale model likewise earns high marks for versatility -- offering a
realistic flight envelope whether you install a glow engine or electric brushless motor system.
SPECIFICATIONS
Stock Number: GPMA1357
Wingspan: 70 in (1780 mm)
Wing Area: 1036 in² (67 dm²)
Weight: 9.5-11.5 lb (4310-5217 g)
Wing Loading: 21-26 oz/ft² (64-78 g/dm²)
Fuselage Length: 63 in (1600 mm)
Glow Power: 2-stroke .61-.75 cu in (10-12
cc) or 4-stroke .91 (15 cc)
Electric Power: C50-65-450 Outrunner;
80 Amp ESC; 3200 mAh LiPo battery
Radio Required: 5-channel with 7 servos
Pilot figure not included.
Stock Number: GPMA1357
Wingspan: 70 in (1780 mm)
Wing Area: 1036 in² (67 dm²)
Weight: 9.5-11.5 lb (4310-5217 g)
Wing Loading: 21-26 oz/ft² (64-78 g/dm²)
Fuselage Length: 63 in (1600 mm)
Glow Power: 2-stroke .61-.75 cu in (10-12
cc) or 4-stroke .91 (15 cc)
Electric Power: C50-65-450 Outrunner;
80 Amp ESC; 3200 mAh LiPo battery
Radio Required: 5-channel with 7 servos
Pilot figure not included.
---An ideal first 1/4 scale model -- and for learning how to fly with flaps.
---Assembles in as little as 20 hours, from factory-built and covered balsa/ply main structures and high-quality
fiberglass parts.
---Includes an aluminum spinner, durable formed aluminum landing gear and high-quality Great Planes brand
hardware.
---Assembles in as little as 20 hours, from factory-built and covered balsa/ply main structures and high-quality
fiberglass parts.
---Includes an aluminum spinner, durable formed aluminum landing gear and high-quality Great Planes brand
hardware.
In addition to being an excellent first large-scale
model, the RV-4 ARF is a fine choice for learning
to add flaps to your control options. They aren't
required for flight but can be used to slow the
model for easier landings.
model, the RV-4 ARF is a fine choice for learning
to add flaps to your control options. They aren't
required for flight but can be used to slow the
model for easier landings.
| $ 319.99 |

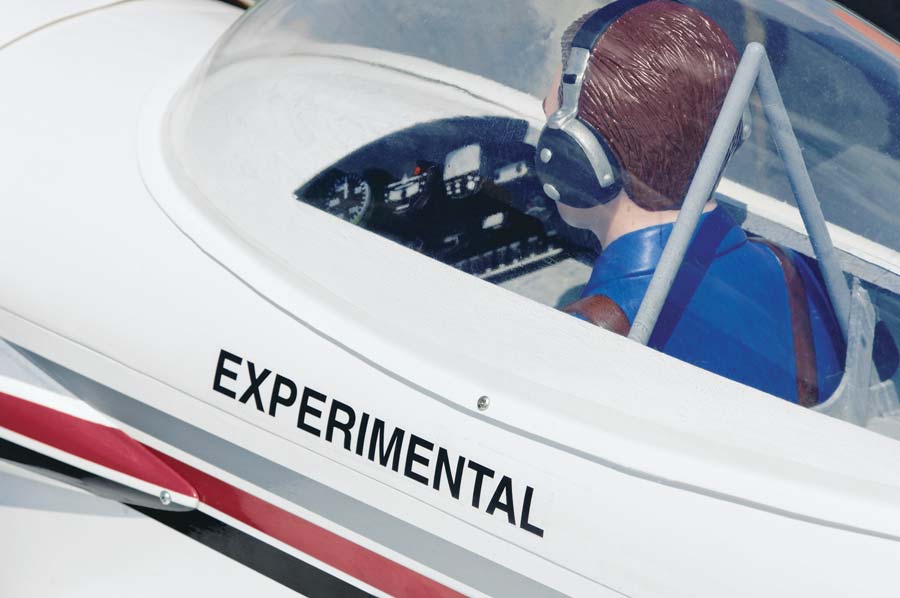

The RV-4 ARF's cockpit includes a rollover bar
and an instrument panel whose gauges appear
realistically recessed -- an effect gained by
placing the instrument panel decal behind the
laser-cut dashboard.
and an instrument panel whose gauges appear
realistically recessed -- an effect gained by
placing the instrument panel decal behind the
laser-cut dashboard.

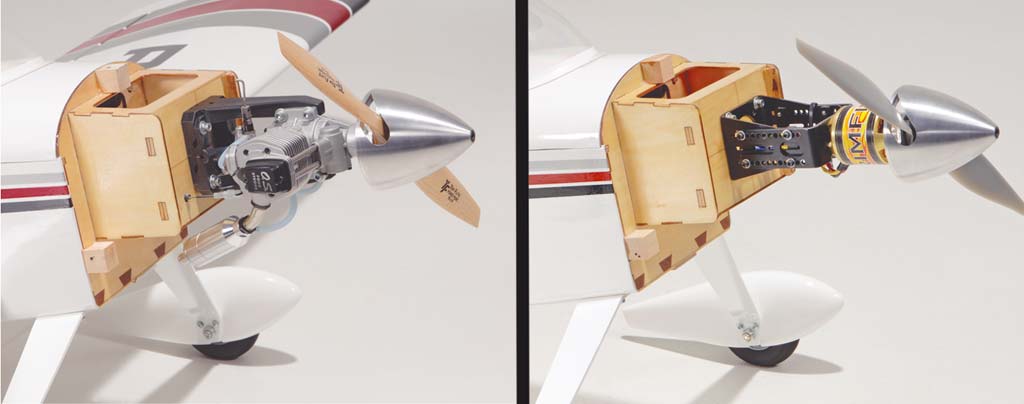

Flown with the recommended glow engines or
electric brushless motor systems, this ARF
recreates the flight characteristics of the full-size
homebuilt. An O.S.® FS-91 Surpass II glow engine
offers excellent fuel economy and scale-like sound.
The ElectriFlyTM RimFireTM 50-65-450 brushless
motor delivers performance comparable to a .91
glow engine.
electric brushless motor systems, this ARF
recreates the flight characteristics of the full-size
homebuilt. An O.S.® FS-91 Surpass II glow engine
offers excellent fuel economy and scale-like sound.
The ElectriFlyTM RimFireTM 50-65-450 brushless
motor delivers performance comparable to a .91
glow engine.

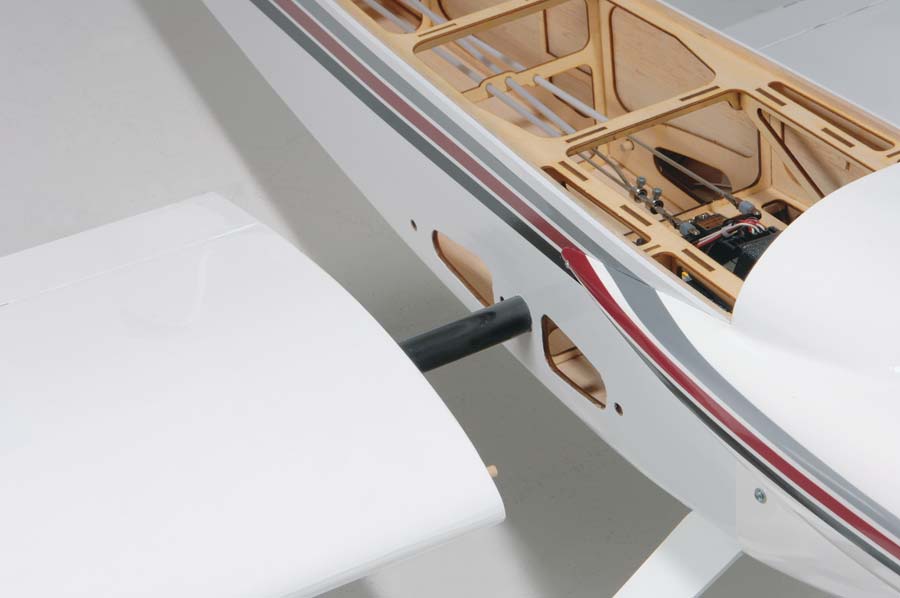

Despite its 1/4 scale dimensions, the RV-4 ARF
is also designed for convenient transport. Its
wing halves detach easily for fitting the model
into your vehicle. At the field, the halves plug
quickly and securely onto aluminum joiner tubes.
The removable radio compartment hatch allows
for easy access when installing the wing bolts.
is also designed for convenient transport. Its
wing halves detach easily for fitting the model
into your vehicle. At the field, the halves plug
quickly and securely onto aluminum joiner tubes.
The removable radio compartment hatch allows
for easy access when installing the wing bolts.
Glow Power Option: Engine Required: 2-stroke .61-.75 cu in (10-12 cc) or 4-stroke .91 (15 cc)
Electric Power Option: Motor Recommended: ElectriFlyTM RimFireTM C50-65-450 (GPMG4770);
80 Amp ESC; Battery Recommended: 6S1P 3200 mAh LiPo battery or 12V 3600 NiMH battery
Electric Power Option: Motor Recommended: ElectriFlyTM RimFireTM C50-65-450 (GPMG4770);
80 Amp ESC; Battery Recommended: 6S1P 3200 mAh LiPo battery or 12V 3600 NiMH battery
| Power Options |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
